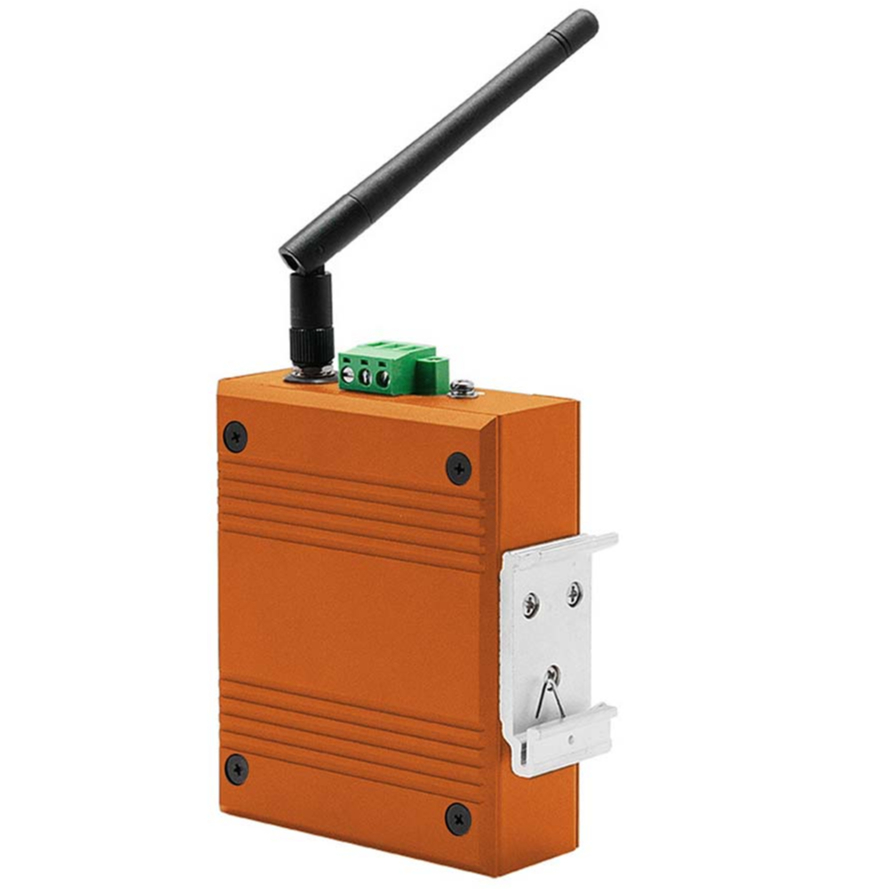

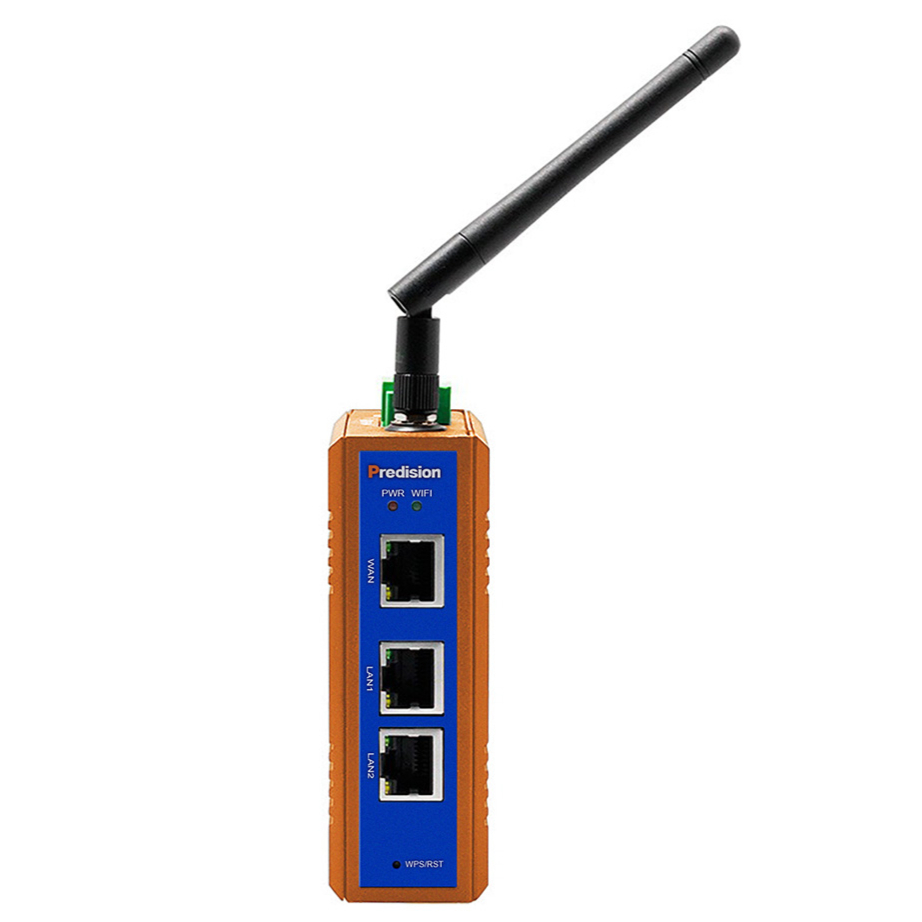

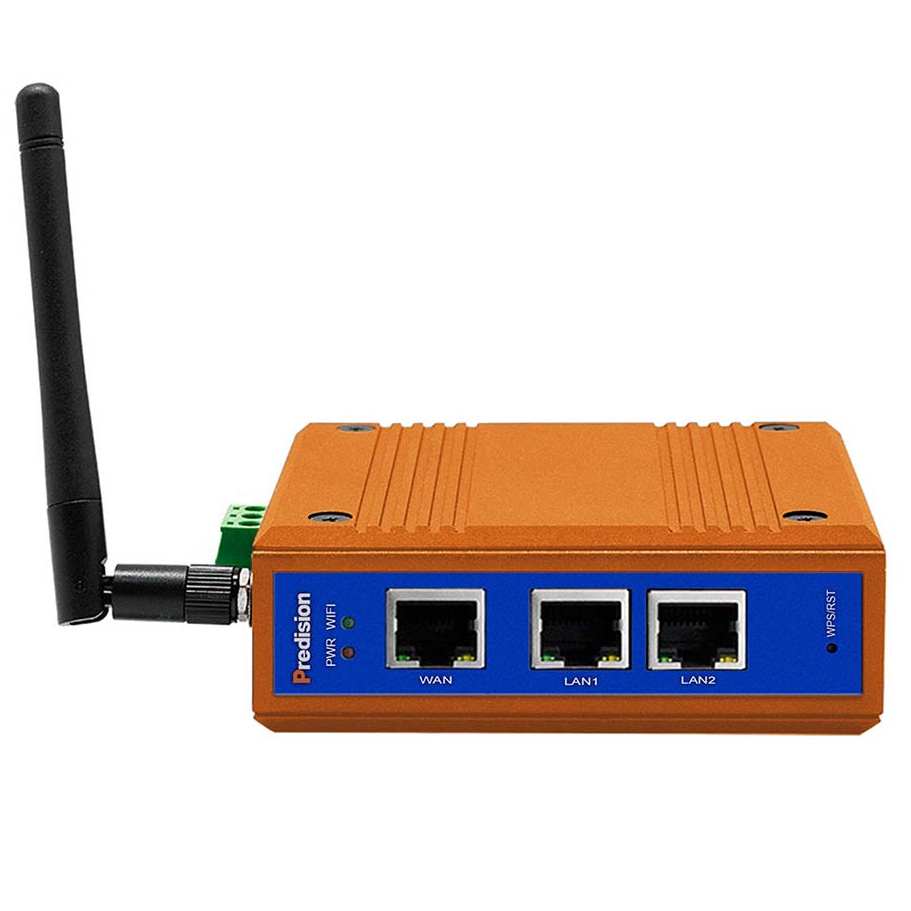

Name: Wireless AP Receiver
Brand: Predision
Price: 251.00 USD
Availability: OutOfStock

account&orders

Home

Wireless AP Receiver

Manufacturer Part Number: HEAP-T-007

Brand: Predision

$ 251.00

Compliant with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n Standards
Supports PPPOE/TCP/UDP/DDDNS/DHCP/DNS/HTTP Protocols
Supports Gateway Mode, Universal Relay Mode, Wireless ISP, Wireless AP Functions
Supports Multiple Security Authentication Mechanisms (WEP/WPA-PSK/WPA2-PSK)
Supports SSID Broadcast Control and MAC Address Based Access Control
Built-in DHCP Server, which Can Also Perform Static Address Allocation, and Can Open Internet Access Rights for Designated Computers in A Targeted Manner

See our Shipping Policy for delivery regions and fees

HEAP-T-007 wireless AP receiver is an industrial-grade wireless device for indoor environments. It can realize gateway mode, universal relay mode, wireless ISP, and wireless AP. This product realizes simple wired-to-wireless network interconnection.

Standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Equipment Interface	3 x 10/100Mbps Self-adaptive Wired Network Interface
	1 x Reset Button for Restoring the Factory Settings
	1 x 3P Plug-pull Socket
Antenna	1 x 2.4G Gain: 3dBi TLB High-gain Omni-directional Eternal Rubber Stick Antenna
Power Supply	DC 12 ~ 48V, 1A
RF Characteristics	802.11b/g/n:
	2.4~2.4835GHz
	Optional Korean, Japanese, ETSI, FCC Communication Channels Transmission Speed 300 Mbps
Transmission Speed	150 Mbps
Receiving Sensitivity	802.11n (2.4GHz)	802.11g	802.11b
	-90dBm @ MCS0	- 90dBm @ 6Mbps	- 95dBm @ 1Mbps
	-70dBm @ MCS7	- 72dBm @ 54Mbps	- 90dBm @ 11Mbps
	-90dBm @ MCS8
	-68dBm @ MCS15
	Radio 1 (WLAN1)
Transmission Power	802.11n (2.4GHz)(± 1.5dBm)	802.11g (± 1.5dBm)	802.11b (±1.5dBm)
	20dBm@ MCS0~2/MCS8~10	20dBm @ 6~24Mbps	20dBm @1~11Mbps
	18dBm @ MCS3/MCS11	18dBm @ 36Mbps
	18dBm @ MCS4/MCS12	16dBm @ 48Mbps
	18dBm @ MCS5/MCS13	16dBm @ 54Mbps
	18dBm @ MCS6/MCS14
	18dBm @ MCS7/MCS15
Operating Temperature	-20 ~ 70℃
Operating Humidity	10%~95% RH (Non-condensing)
Storage Temperature	-40 ~ 70℃
Storage Humidity	5%~95% RH (Non-condensing)
Dimension	100 ×80 ×35mm

HEAP-T-001

Wireless Zigbee Module, 2,405 ~ 2,480 MHz, TX 4.5dBm(Max) , RX -97dBm, 2.0V~3.6V

HEAP-T-004

Wirelsss 433MHz to RS-232/485/422, Transmission Distance: Wireless 433MHz Carrier 300 m (Open Space), RS-232 5 m (1200 bps - 38400bps) RS-485/422 1200 m (1200 bps - 115200 bps), Aluminium Enclosure (Wall Mounted), 9-30 V/DC

HEAP-T-005

Zigbee to RS-232/485/422 Wireless Data Transmission Converter, Transmission Distance: Wireless 2.4 GHz Carrier 2,000 m (Open Space); RS-232 5 m(1,200 - 115,200 bps); RS-485/422 1,200m (1,200 - 115,200 bps), Aluminium Enclosure (Wall Mounted), DC 9-30 V

HEAP-T-006

Industrial AP Repeater, 1 Port, Wireless 300M, Aluminum, 12 - 24 VDC

HEAP-T-007

Industrial AP Receiver, Wireless 150M, aluminum, 12-48V/DC, Supports Gateway Mode, Universal Relay Mode, Wireless ISP, Wireless AP Functions

Datasheet ： Predision_Access_Point_HEAP-T-007_DS_EN.pdf
