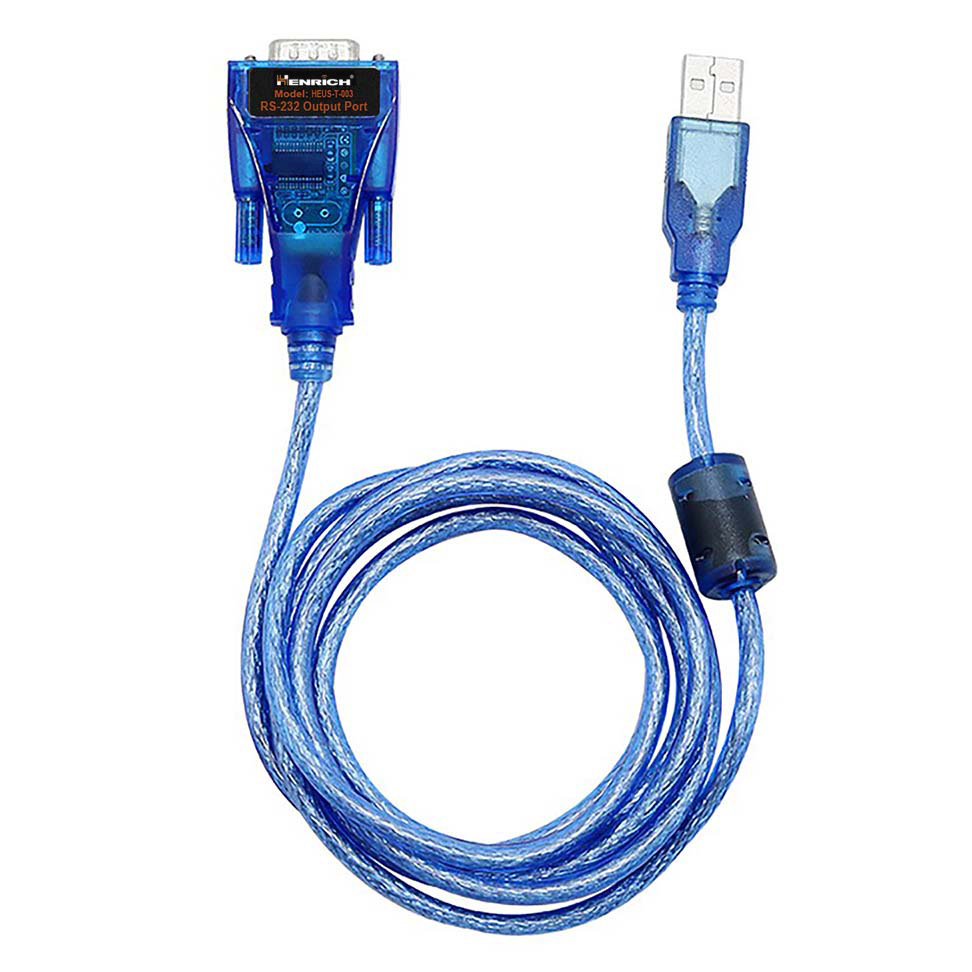

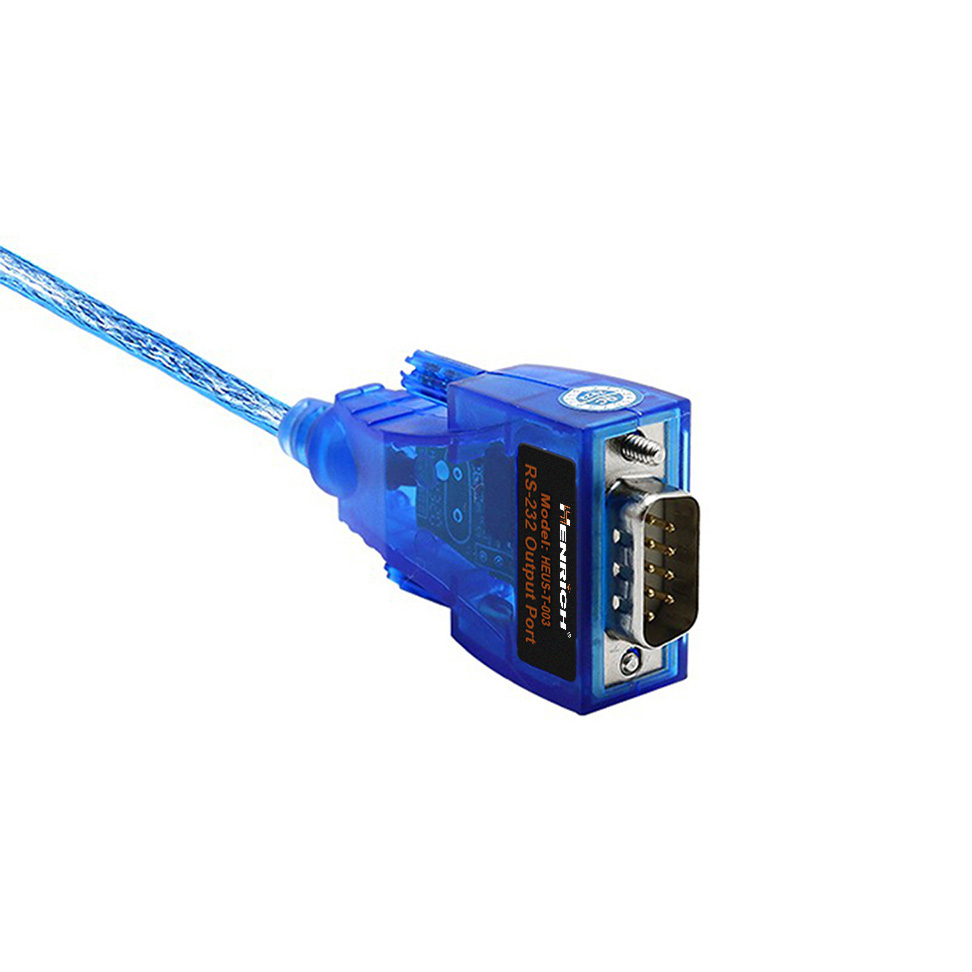

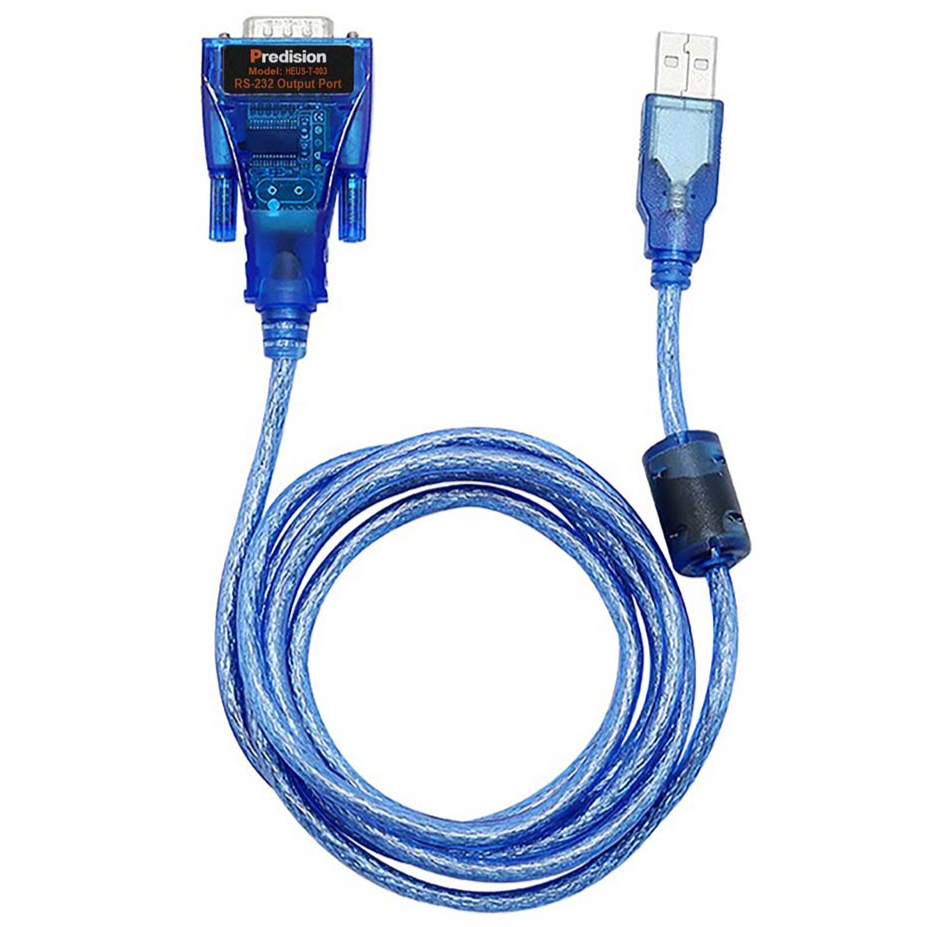

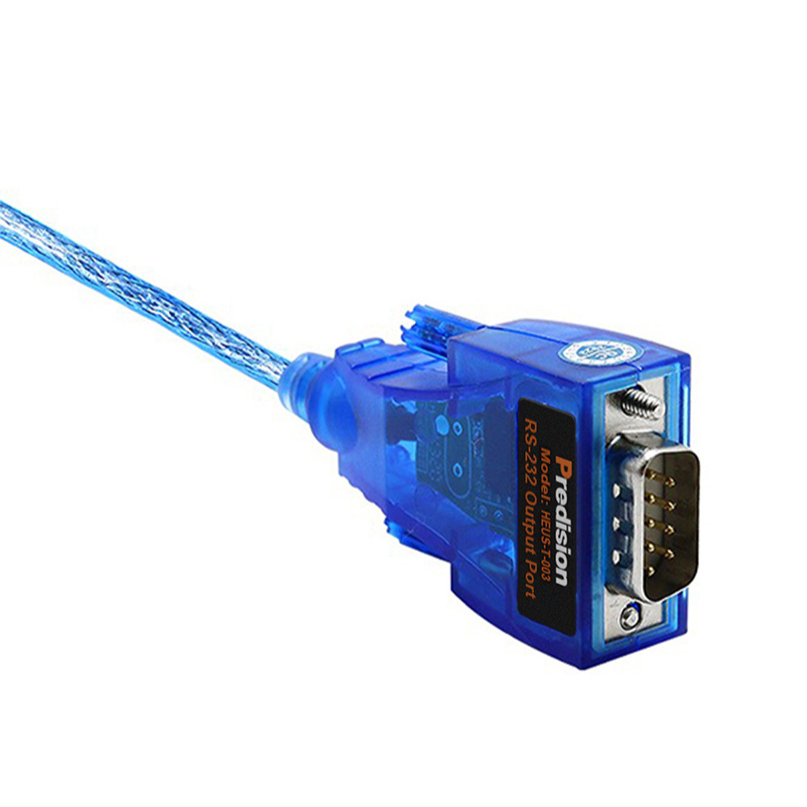

USB to RS-232 Converter
Manufacturer Part Number: HEUS-T-003
Brand: Predision
$ 34.00
- Working Temperature: -25 - 70°C
- Static Protection: Contact: 8KV Air: 15KV
- Baud Rate: 300 - 115,200 bps
See our Shipping Policy for delivery regions and fees
As the PC industry grows, USB ports are replacing most of the low speed external ports. In industrial environment, lots of important equipments still adopt RS-232 interface design. Therefore, most of the users use USB to RS-232 converters to transmit the data between PC and RS-232 equipment.
HEUS-T-003 is a universal USB to RS-232 converter. There is no need for external power and it is compatible with USB and RS-232 standards. HEUS-T-003 enables to convert USB signal to RS-232 signal. Internal zero delay auto receiving and transmitting function, unique I/O circuit auto control data flow direction and plug & play, all these ensure that it is compatible with all the communication software and interface hardware.
HEUS-T-003 interface converter supports baud rate 300 - 115,200 bps. The power and data flow indicators show the status of the communication.
HEUS-T-003 is a universal USB to RS-232 converter. There is no need for external power and it is compatible with USB and RS-232 standards. HEUS-T-003 enables to convert USB signal to RS-232 signal. Internal zero delay auto receiving and transmitting function, unique I/O circuit auto control data flow direction and plug & play, all these ensure that it is compatible with all the communication software and interface hardware.
HEUS-T-003 interface converter supports baud rate 300 - 115,200 bps. The power and data flow indicators show the status of the communication.
| Standards | Compliant with USB 1.1, 2.0, EIA RS-232 Standards |
| USB Port | USB Bus Direct Power Take-off, No External Power Supply Required; ±15 KV ESD Anti-static Protection |
| USB Signals | VCC, DATA-, DATA+, GND |
| RS-232 Signals | TXD, RXD, CTS, RTS |
| Direction Control | Automatic Data Flow Control Technology is Used to Automatically Identify and Control the Direction of Data Transmission |
| Baud Rate | 300 - 115,200 bps, Automatic Detection of Serial Signal Rate |
| Transmitting Distance | 15m for RS-232 Port, 5m for USB Port |
| Working Voltage | DC 5V ± 0.25V |
| Cable Length | 1,500 mm |
| Operating Temperature | -25°C to 70°C; Relative Humidity: 5% to 95% |
| USB Port Static Protection | Contact: 8KV Air: 15KV |
| Supporting System | Win98/Win2000/WinXP/Vista/Win7/Win8/Linux etc. |
Plastic with Screws,1.5m, USB to RS-232 Converter, USB 2.0 Full Speed, Baud Rate: 300 - 115,200 bps, Auto Detection, Transmission Distance: 15m for RS-232 Port, 5m for USB Port, Operating Temperature: -25℃ to 70℃
Plastic with Screws,1.5m, USB to RS-232 Converter, USB 2.0 Full Speed, Baud Rate: 300-460,800 bps, Auto Detection, Transmission Distance: 15m for RS-232 Port, 5m for USB Port, Working Temperature: -40℃ to 85℃
Aluminum Enclosure, USB to RS-232 Converter, USB V2.0, Photoelectric Isolated, Baud Rate: 300-460,800 bps Auto-detect Serial Signal, Transmission Distance: 5m for RS-232 Port, 5m for USB port, Operating Temperature: -40℃ to 85℃
Injected Molding with Screws, 1.5m, USB to RS-232 Converter USB V2.0, Baud Rate: 300-460,800 bps, Auto-detect Serial Signal, Transmission Distance: 5m for RS-232 port, 5m for USB Port, Operating Temperature: -40℃ to 85℃
Injected with Screws, 1.5m, USB to RS-232 Converter USB V2.0, Baud Rate: 300-460,800 bps, Auto-detect Serial Signal, Transmission Distance: 5m for RS-232 port, 5m for USB Port, ±15KV Electrostatic Protection, Operating Temperature: -40℃ to 85℃
Plastic with Screws, 1.5m, DB9 Base, USB to RS-232 Converter USB V2.0 (Active Screw), Baud rate: 300 bps-460.8 Kbps, USB Port-powered, No Need for External Power Supply, Operating Temperature: -40℃ to 85℃
DB 9M, USB Terminal Plastic, 1.5m, USB to RS-232 Converter USB 2.0(DB9), Baud Rate: 300 - 115.2 Kbps, USB Port-powered, Working Temperature: -40℃ to 85℃
RJ45, USB Terminal Injected, 1.5m, USB to RS-232 Console Debug Cable, Baud Rate: 300 - 460,800 bps Auto Detection, Transmission Distance: 5m for RS-232 Port, 5m for USB Port, Operating Temperature: -40 - 85°C
Plastic, USB to RS-232 Converter USB V2.0, Baud Rate: 300-460,800 bps, Auto Detection, Supports Point-to-point RS-232 Interface Devices, Transmission Distance: USB Port 5m, RS-232 Port 5m, Working Temperature: -40℃ to 85℃
Photoelectric Isolated, Aluminum Enclosure, USB to 2-port RS-232 Converter, Baud Rate: 300 - 115,200 bps, Serial Signal Baud Rate Auto Detection, Supports Point-to-point, Working Temperature: -40℃ to 85℃
Plastic Assembly, 1.5m, USB to 4-port RS-232 Converter USB V2.0, Baud Rate: 300 - 921,600 bps, Auto Detection, Supports Point-to-point, Transmission Distance: RS-232 5m, USB 5m, Operating Temperature: -40℃ to 85℃
USB to 8-port RS-232 Serial Converter, USB 2.0, 1U Enclosure, AC Power Supply 220V, Baud Rate: 300 bps - 921.6 Kbps, Auto Detection, Operating Temperature: -25℃ to 70℃
